Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory

Marka Adı:	Ebuddy
Model Numarası:	FGG.1K.304
Moq:	1
fiyat:	Pazarlık edilebilir
Ödeme Şartları:	Western Union, T/T, Paypal

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE.ROHS

Boyut:

Lemo K serisi

Pinler:

Çoklu 2-32pin

Cinsiyet:

kadın ve erkek

Push Pull Self Locking

IP Derecelendirmesi:

Maks. çiftleşme:

5000 kez

Konut malzemesi:

Paslanmaz çelik, alüminyum, bakır

Temas malzemesi:

Bakır Altın Kaplama

Ambalaj bilgileri:

sayfa sayısı

Yetenek temini:

Ayda 10000 pcs

Vurgulamak:

Lemo K Series circular connectors

Push-pull self-locking Lemo connectors

OEM ODM Lemo K Series plugs

Ürün Tanımı

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory

Features:

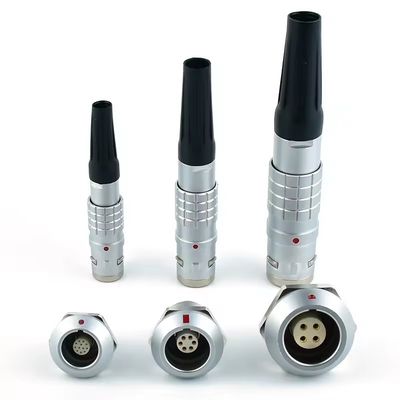

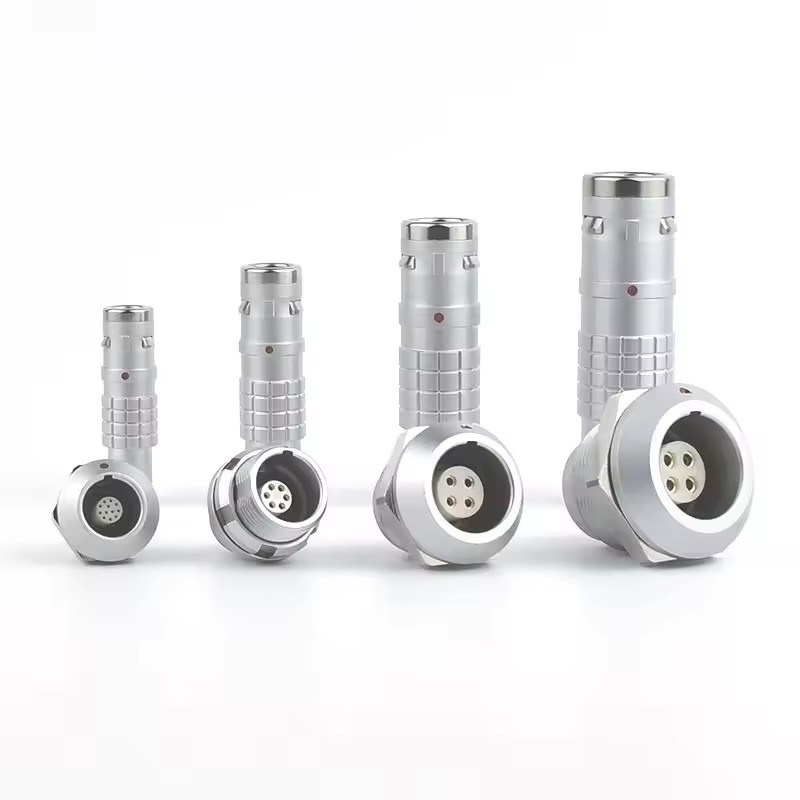

Lemo K series male plug,female socket.
IP67-68 waterproof.
Pins: 2pin 3pin 4pin 5pin 6pin 7pin 8pin 9pin 10pin 12pin 14pin 16pin 19pin 26pin 32pin.
Size:0K 1K 2K size ,optional.
3-5 working days for standard models.
Good quality with best competitive price, can help you save at least 50% cost.
100% compatible with Lemo, or we will refund.
Cable assembly service avaliable.
ODM,OEM welcomed.
MOQ: 1pc

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory 0

K Series Cable collet size :

	Collet No.		Cable OD(mm)
0K	Type	coding	Max	Min
	C	30	3.0	2.6
	C	40	4.0	3.6
	C	45	4.5	4.1
	C	50	5.0	4.6

	Collet No.		Cable OD(mm)
1K	Type	coding	Max	Min
	C	45	4.5	4.1
	C	50	5.0	4.6
	C	55	5.5	5.0
	C	60	6.0	5.6
	K	70	7.0	6.6

	Collet No.		Cable OD(mm)
2K	Type	coding	Max	Min
	C	65	6.5	6.1
	C	70	7.0	6.6
	C	85	8.5	8.1
	C	11	10.5	10.1

Corlorful Sleeve (Jacket) Optional:

Specification:

Material: Polyurethane material(PU)
Temperature range: -40°--- +80°
Color: Black, Red, Blue, White, Yellow, Green
Size: 00B/0B/1B/2B, 0K/1K/2K
Cable OD Range: 3.1mm—8.2mm

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory 1

Application use:

Industrial Control
Test and Measurement Equipment
Information Systems
Automotive and Military
Extreme Working Conditions
Harsh Environments

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory 2

Our Service:

To Be Your Best Connection Expert

1)Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service.
2) Provide free samples within 3 working days if it is normal product with existing tooling.
3) Effective communication and rapid response .
4) Early design-in capability,OEM, ODM are available .
5) Globalization, localization of operation and management .

Compatible Lemo K Series Circular Connectors FGG EEG EXG Push-Pull Self-locking Socket Plug OEM ODM Factory 3

Etiketler:

lemo dairesel konektörler

lemo fiber optik konektörler

lemo triax konektörler
