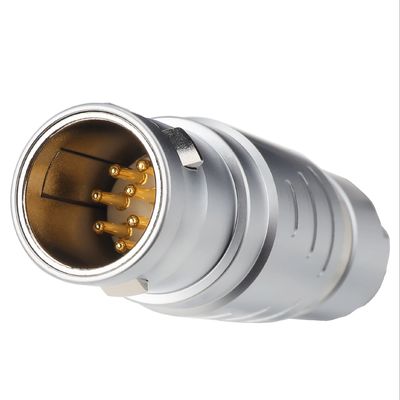

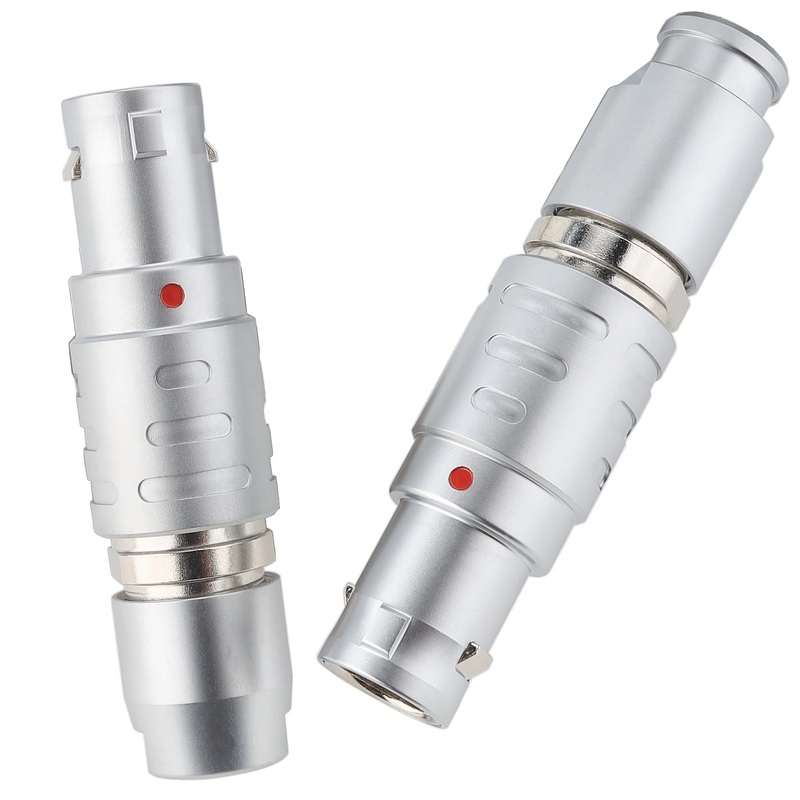

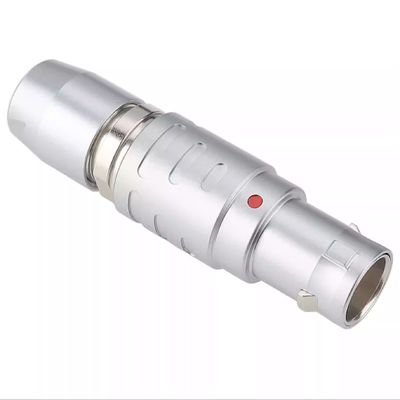

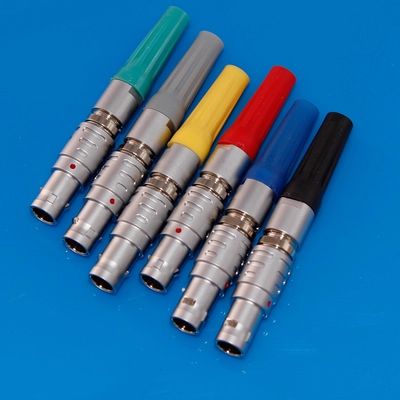

Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin

Push-pull Self-locking Circular Connectors Cable Assembly Compatiable Lemo B Series Female FGG 2-12 Pin

Marka Adı:	OEM
Model Numarası:	Fgg yumurta
Moq:	1 adet
fiyat:	Pazarlık edilebilir
Teslim Zamanı:	3-10 iş günü
Ödeme Şartları:	Western Union, Moneygram, T/T, PayPal

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

CE,ROHS

Seri:

Lemo B serisi

Kontaklar:

2-16pins

Yalıtkan:

P: PPS

Sonlandırma yöntemi:

Lehim

Çiftleşme döngüleri:

5000 kez

İletişim Türü:

Erkek fiş ve dişi soketi

IP derecesi:

Malzeme:

Pirinç

Renk:

Gümüş, Siyah

Ambalaj bilgileri:

PP Torbası

Yetenek temini:

Ayda 50000pcs

Vurgulamak:

Lemo B Series push-pull connectors

self-locking circular cable assembly

Lemo FGG female 2-12 pin

Ürün Tanımı

Push-pull Self-locking Circular Connectors Cable Assembly Compatible Lemo B Series Female FGG 2-12 Pin

Push-pull Self-locking Circular Connectors Compatible Lemo B Series Female FGG 2-12 Pin

Product Features

100% compatible Lemo B series FGG male plug
0B 1B 2B 3B 4B 2-12pins free socket for extension cable
Application: Audio & Video, Automotive, PCB, Communication, Aviation
Housing Material: Brass chrome plated
Mating cycles: 5000 times
IP Rating: IP50

Applications

Broadcast:
Studios and outside broadcasting
TV and motion picture
HD and SD cameras
Remote camera control
Defense & Security:
Communication systems
Surveillance equipment
Computers
Target acquisition
Instrumentation
Test & measurement:
Sensors
Data acquisition
Automation
Scientific research
Vacuum

Size & Drawings

DIY Cable Assembly Process

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldered insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
Put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
Push the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut

Frequently Asked Questions

1. Are your company a professional manufacturer?

Re: Yes, we specialized in producing circular push pull connectors and cable assembly since 2015. We have the series connectors and cable assembly like Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.

2. What is the MOQ?

Re: No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample :

Re: Available. Any needs, please contact us.

4. What about the delivery time?

Re: sample for 1-2 working days, mass production for 5-10 working days.

5.What is your payment terms?

Re: We accept most of the payment methods, but mainly accept TT,LC, Paypal.

6. Does your product have any warranty?

Re: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
